Dongfeng 290HP 6X4 10 Wheels 20 Cubic Meters Water Tank Water Sprinkler Tanker Trucks

Name: Dongfeng 290HP 6X4 10 Wheels 20 Cubic Meters Water Tank Water Sprinkler Tanker Trucks
Brand: Dongfeng
Price: 35 USD

Quality Dongfeng 290HP 6X4 10 Wheels 20 Cubic Meters Water Tank Water Sprinkler Tanker Trucks wholesale

Condition : New

Storage : Water

Drive Wheel : 6x4

Horsepower : 150 - 250hp

Transmission Type : Manual

Fuel Type : Diesel

Tank Volume : 15001 - 30000L

Dimensions (L x W x H) (mm) : 9400*2550*3400 mm

Brand Name : Dongfeng

Place of Origin : Hubei, China

Gross Vehicle Weight : 250000

After-sales Service Provided : Video technical support, Return and Replacement, Online support, Free spare parts

Capacity (Load) : 11 - 20T

Engine Capacity : 4 - 6L

Forward Shift Number : 6

Maximum Torque(Nm) : 1500-2000Nm

Fuel Tank Capacity : 100-200L

Product name : Water Truck

Fuel : Diesel

Engine model : C u m m i n s D6.7NS6B290

Cabin : Cab and Half/With sleeper bed

Max speed : 89 Km/h

Driving type : 6*4 Driving

Key words : Water Mist Sprayer Truck, Dongfeng Truck

Loading capacity : 16.03 M3

Tire : 11.00 R20

Transmission : 6 speed, Manuel

Price : $35,500.00/units 1-2 units

Contact Now

Welcome To YIZHUAN Special Auto

Dongfeng 290HP 6X4 10 Wheels 20 Cubic Meters Water Tank Water Sprinkler Tanker Trucks

Welcome to Hubei YIZHUAN Special Auto CO., LTD

Dear Friend, having a nice day, thanks for your browsing on our website, i am so glad to write you. We are a professional Special Auto manufacturer and supplier with having rich experiences and professional manufacturing teams, workshops, equipment and tech teams.Have cooperation with H O W O, I S U Z U, S I N O TRUCK, Dongfeng and so on Vehicle brands several years.

Mainly produce Fuel Tank Truck, LED advertising truck, Wrecker truck, Road sweeper, Water truck, Refrigerated truck, Garbage truck, LPG tanks, Concrete mixer truck, Cargo truck, Dump truck, Van truck, Truck mounted crane, Aerial work platform truck, Tractor truck, Semi-trailer, Bulk cement truck, Sewage suction truck, Fecal suction truck, and so on Special vehicles more than 200 kinds. Our prices are very competitive.

Welcome to consult and inquiries!

Product Description

China Brand 290HP 6X4 10 Wheels 20 Cubic Meters Water Tank Water Sprinkler Truck

Sprinkler: also known as green spraying vehicle, water tanker, composed of automobile chassis, water inlet and outlet system and tank body. There are multiple spraying and water transport functions according to different use environments and purposes. The multi-function sprinkler integrates multiple functions and can be specially modified according to user requirements. The water tank truck produced by Hubei Yizhuan Automobile Co., Ltd. adopts a Class two chassis produced by a well-known manufacturer, like as dongfeng, ISU ZU chassis and so on. The upper part is composed of a PTO , a self-priming water pump, a tank(2-20 m ), a spray device, In order to ensure the quality and durability of the products and enhance the using experience ofclients, the above-mentioned equipment is selected from famous brand suppliers.

SPECIFICATION
Model
Dimension & Weight			..	Colour
Overall dimension	Length (mm)	10200
	Fabric	Width (mm)	2520
	Size	Height (mm)	3200
Wheelbase (mm)			5700+1350
Total weight (kg)			25000
Tare weight (kg)			10400
Payload (kg)			14470
Engine
Engine Model			D6.7NS6B320, C u m m i n s ENGINE
Engine Type			6 cylinder in-line, Water, cooled, turbocharge
Fuel Type			Diesel
Engine Power (kW/HP)			232/320
Related Speed (rpm)			2800
Max torque (N.m/rpm)			1200/1200-1500
Displacement (L)			6.7
Fuel consumption (L/100km)			10
Emission			Euro 6
Bore x stroke (mm)			108x115
Minimum fuel consumption rate at full load			205g/kW.h
Chassis system
Transmission			5 speed, Manuel
Suspension Type			Leaf spring
Clutch			430mm single sheet dry-type clutch
Steering			Power steering
Tyre			11.00-R20

More Tech Spec, pls check the supplier!

Detailed Images

Download The Operation Instruction(PDF) For Water Truck

Self-priming is to suck the external water into the tank through the on-board pump. Operation Process: Connect the free-flow port of the three-way ball valve on the right side of the water truck to the water pipe at one end, and insert the other end into the place where water needs to be pumped. Make the concave point of the three-way ball valve pointing to the direction of the cab and open the straight ball valve handle to the direction of the rear platform (When the concave point of the three-way ball valve is parallel to the straight-way ball valve handle, which is completely open). Then, start the engine, step on the clutch, turn on the PTO switch, slowly raise the clutch pedal (do not go too fast, otherwise it will damage the PTO or gearbox meshing gear), so that the water pump starts to pump water. That means add water to the tank and turn off the PTO switch after stopping work. (Note: When self-priming, there must be water in the pump. It is best to let some water in and out of the pipeline to ensure that the pump has power).

Get the Wonderful Water Mist Sprayer Price!

Our Services & Strength

Our company has solid technology, flawless inspection, advanced equipment, reliable quality and flexible modes of operation. What's more, we have obtained ISO9001 and CCC certificates (China Compulsory Certification). Yizhuan series trucks have occupied the interior market for many years and have procured remarkable achievements. Our survival is based on the quality. Credit standing is the guarantee of our success. We will endeavor to treat customers honestly, managing flexibly, guaranteeing high quality but low price, and keeping high efficiency. We promise that all the products that are adapted and sold by us can get one-year services and maintenance for the life. What's more, the service can be dealt with in 48 hours. Hubei Yizhuan Special Automobile is willing to serve for you, and is looking forward to your coming to visit our company.

Our main business:
1.Refitting special purpose vehicles.
2.Producing and distributing chassis, including DONGFENG, F O T O N, S I N O-TRUCK, FAW, JAC, JMC and I S U Z U, and etc.

Our leading productions:
1. Water truck
2. Sewage suction truck
3. Garbage truck
4. Road sweeper truck
5. Fuel tank truck
6. High-altitude operation truck
7. Off Road Vehicles
8. Dump truck
9. Mobile advertisement truck
10. Concrete mixer truck
11. Wrecker truck
12. Refrigerator Truck
13. Aerial operation truck
14. Box truck
15. Bus
16. Mobile kichen truck
And etc, totally more than 300 types special purpose vehicles.

Check the Company Profile and Certificates!

Check the Company Profile and Certificates!

Factory Show

FAQ

1. Is your company a factory or trading Company?
We are a leading manufacture of pressure vessels,bobtails,trailers, trucks, and skid mounted stations,and spare parts. Welcome to visit us in Shiyan city, the production base of Chinese special purpose vehicles.

2. Could you customize exactly according to my requirements?
Yes. We have professional R&D team, we can produce the product exactly according to your requirements.

3. Do you provide certification that we need?
We can provide various certifications associate. Such as BV,DOT, ADR, SASO and so on.

4. What service can I get from you?
We provide lifelong tracking service and one year free warranty for all of our products. Meanwhile we provide free training and technical support to guide you repair your product. If need, we will also send original spare parts free of charge by air.

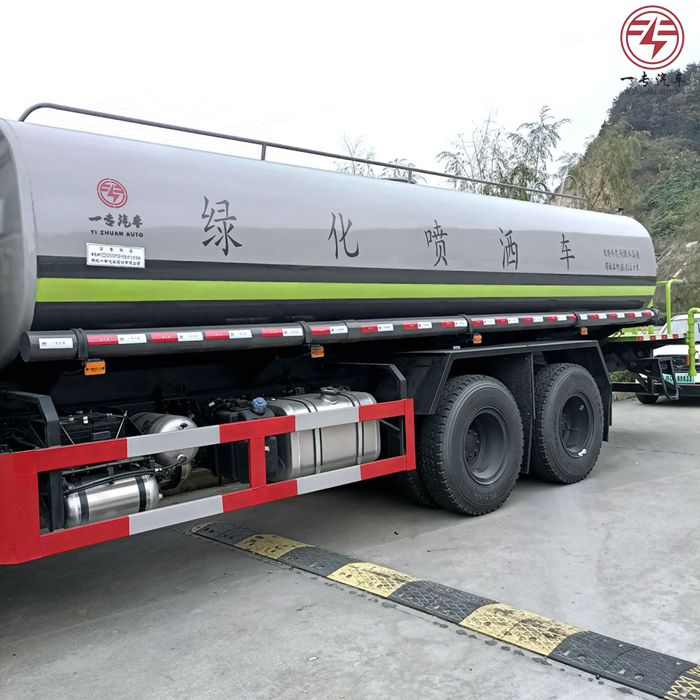

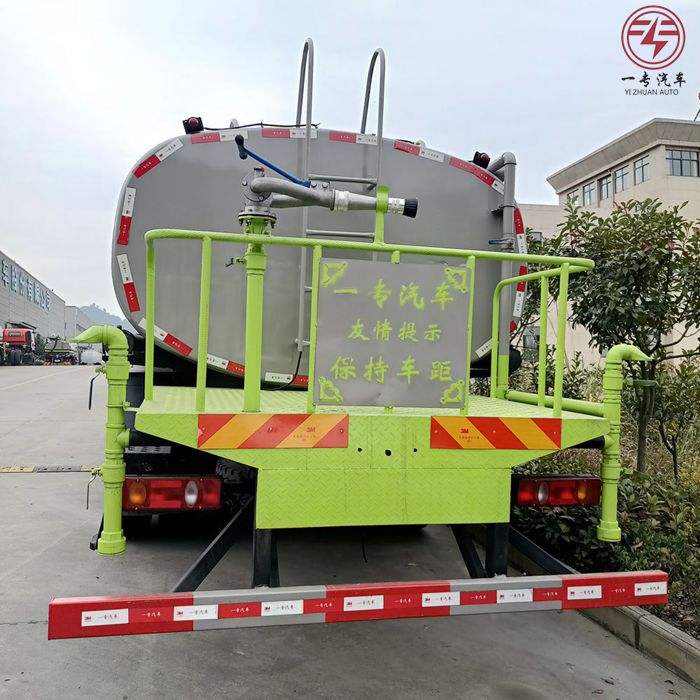

Dongfeng 290HP 6X4 10 Wheels 20 Cubic Meters Water Tank Water Sprinkler Tanker Trucks Images
